性能和特點:

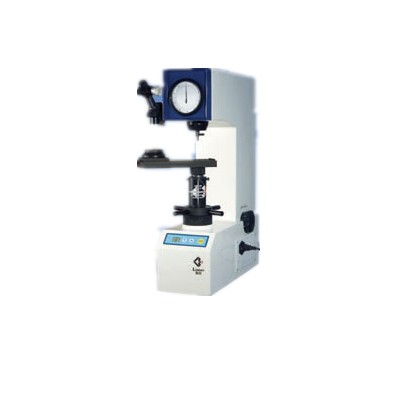

HD9-45型電動表面洛氏維氏硬度計是輕載荷洛維二用表面硬度試驗機,該機具備了六種試驗力,能滿足表面洛氏、維氏硬度的測試。試驗力的施加、保荷和卸荷自動完成。使用方便,該機測試靈敏度高。并可按用戶特殊要求,可改裝鋁制品兼用測試布氏硬度。
適用范圍鋼、表面淬火鋼、銅、鋁合金、薄板、帶鋼、硬質合金鋼、鍍鋅、鍍鉻、鍍錫、材料表面熱處理和化學表面處理的各種金屬材料。
HD9-45B Motorized Superficial Rockwell & Vickers Hardness Tester with 6 steps testing force is able to meet the needs of superficial Rockwell & Vickers hardness tests. Testing force can be loaded, kept and unloaded automatically. Therefore the tester is easy to use and widely welcomed by many users. (The present instrument can be reformed specially to measure Brinell hardness value for aluminum products according to user's special requirement.)
Usage Range:
Steel, surface hardened steel, copper, aluminum alloy thin sheet, hard alloy steel, zinc layers, chrome layers, tin layers, surface heat treating and chemical treating materials, etc.
技術參數(Technical Specifications)
表面洛氏標尺 (Superficial Rockwell Scales) 試驗力(Testing Force) | HR15N, HR30N,,HR45N,HR15T, HR30T,,HR45T 15Kg (147.1N), 30Kg (294.2N),441.3N(45Kg) |
維氏標尺(Vickers Scales) 試驗力(Testing Force) | HV5,HV10,HV20,HV30 5Kg (49.03N),10Kg (98.07N),20Kg (196.1N),30Kg (294.2N) |
硬度讀取 (Indication of Hardness Value) | 表面洛氏(Superficial Rockwell):表盤式(Dial ) 維氏(Vickers): 測量顯微鏡(Measuring Microscope) |
顯微鏡放大倍率 (Amplification of Microscope) | 75X, 150X |
保菏時間(Duration Time) | 2 ~ 60S |
試件*大高度 Max. Height of Specimen | 表面洛氏(Superficial Rockwell): 170mm 維氏(Vickers): 140mm |
儀器尺寸(Overall Dimension) | 520X240X700MM (長X寬X高, L X W X H ) |
儀器重量(Net Weight) | 80 Kg |
電源( Power Supply) | AC220V+5%, 50~60 Hz |
執行標準 (Carried Standard) | GB/T230.2(洛氏,Rockwell), GB/T4340.2 (維氏,Vickers) JJG112 (洛氏, Rockwell) |
標準配件、附件 (Standard Accessories) | 洛氏壓頭,維氏壓頭,直徑1.5875mm硬質合金球壓頭,測量顯微鏡,物鏡,內照明燈一套,大平、中平、V型試臺,溜板試臺,硬度塊,電源線 Rockwell Indenter, Vickers Indenter, Diameter 1.5875mm Hard Alloy Steel Ball Indenter, Measuring Microscope, Objective, a Set of Inside Lights, Large, Medium and V-shaped Testing Table, Slipped Testing Table, Hardness Blocks for Each Scales, Power Cable |
